Player Verify Webhook

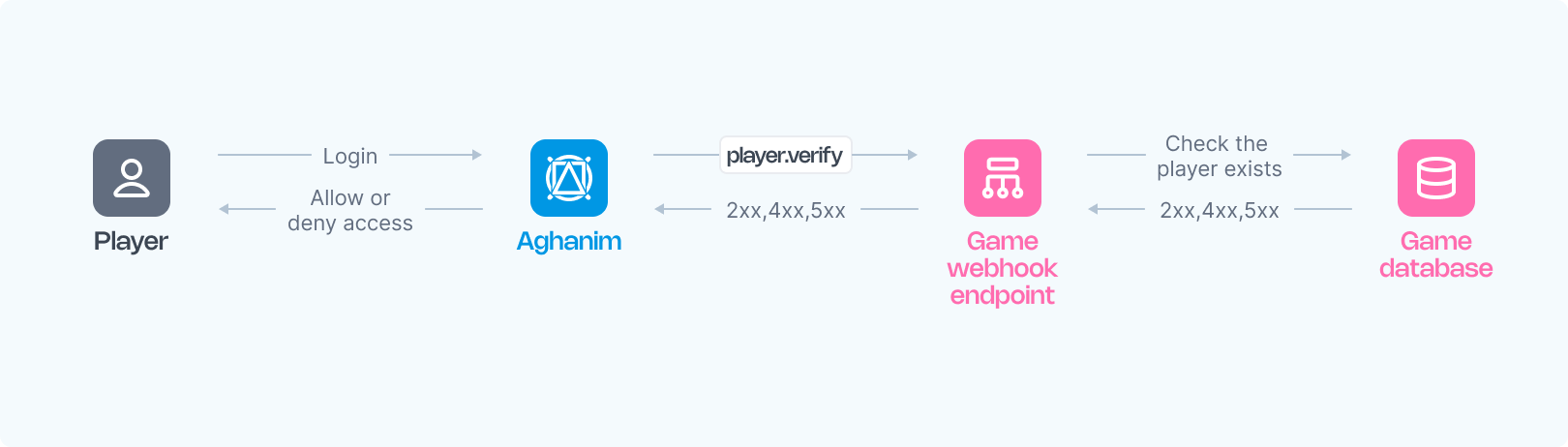

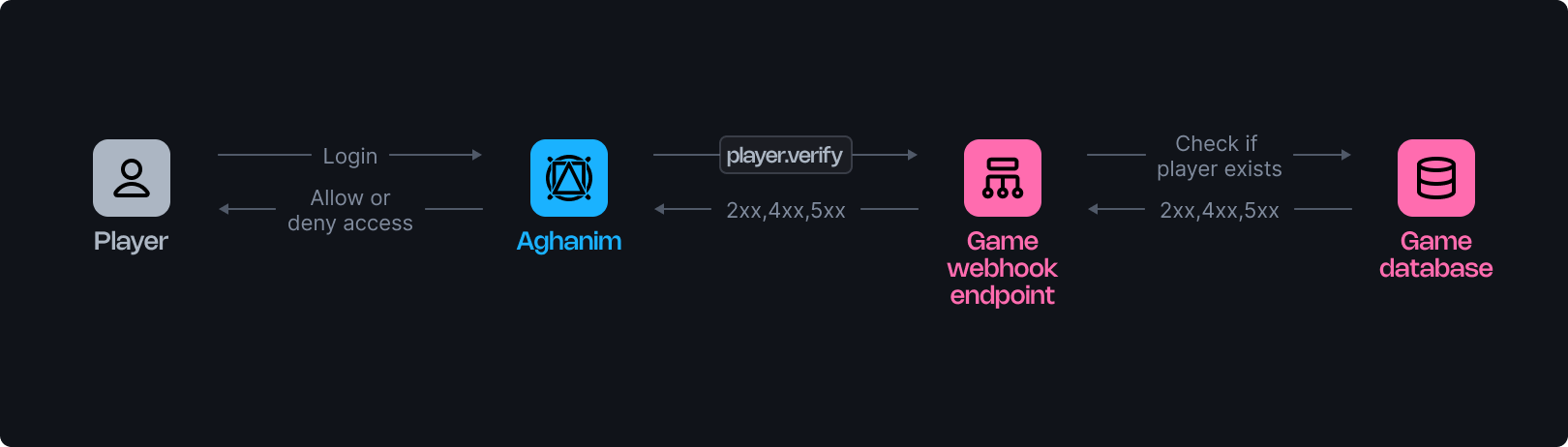

Aghanim utilizes a player verification webhook to inform your game about player logins, requiring confirmation from your webhook server to permit or deny access to the game hub. This document details the operation of these webhooks.

The webhook verifies a player's registration in your game and may be invoked multiple times during the player interactions with the game hub.

Requirements

To use the player verification webhook from Aghanim, you should have the webhook server configured as follows:

• HTTPS endpoint, accepting POST webhook requests.
• Listen for events, generated and signed by Aghanim.
• Verify players against your database to determine access to the game hub based on Player ID.
• Respond with a 2xx status code and the corresponding JSON payload for approval, and 4xx or 5xx for denial or errors.

Configuration

Below are function templates designed for an endpoint that processes player verification events generated by Aghanim:

• Python
• Ruby
• Node.js
• Go

import fastapi, hashlib, hmac, json, typing

app = fastapi.FastAPI()

@app.post("/webhook")
async def webhook(request: fastapi.Request) -> dict[str, typing.Any]:
    secret_key = "<YOUR_S2S_KEY>"  # Replace with your actual webhook secret key

    raw_payload = await request.body()
    payload = raw_payload.decode()
    timestamp = request.headers["x-aghanim-signature-timestamp"]
    received_signature = request.headers["x-aghanim-signature"]

    if not verify_signature(secret_key, payload, timestamp, received_signature):
        raise fastapi.HTTPException(status_code=403, detail="Invalid signature")

    data = json.loads(payload)
    event_type = data["event_type"]
    event_data = data["event_data"]

    if event_type == "player.verify":
        player_data = verify_player(event_data)
        if not player_data:
            raise fastapi.HTTPException( status_code=401, detail="Player verification failed")
        return player_data

    raise fastapi.HTTPException(status_code=400, detail="Unknown event type")

def verify_signature(secret_key: str, payload: str, timestamp: str, received_signature: str) -> bool:
    signature_data = f"{timestamp}.{payload}"
    computed_hash = hmac.new(secret_key.encode(), signature_data.encode(), hashlib.sha256)
    computed_signature = computed_hash.hexdigest()
    return hmac.compare_digest(computed_signature, received_signature)

def verify_player(event_data: dict[str, typing.Any]) -> dict[str, typing.Any]:
    # Placeholder logic for fetching of player data.
    # In a real application, this function would interact with your database or user management system.
    return {
        "player_id": "r2d2-c3po",
        "name": "Molly",
        "attributes": {"level": 2},
        "country": "US"
    }

require 'sinatra'
require 'json'
require 'openssl'

post '/webhook' do
  secret_key = "<YOUR_S2S_KEY>"  # Replace with your actual webhook secret key

  payload = request.body.read
  timestamp = request.env["HTTP_X_AGHANIM_SIGNATURE_TIMESTAMP"]
  received_signature = request.env["HTTP_X_AGHANIM_SIGNATURE"]

  unless verify_signature(secret_key, payload, timestamp, received_signature)
    halt 403, "Invalid signature"
  end

  data = JSON.parse(payload)
  event_type = data["event_type"]
  event_data = data["event_data"]

  if event_type == "player.verify"
    player_data = fetch_player_data(event_data)
    if player_data.nil?
      halt 401, "Player verification failed"
    end
    return player_data.to_json
  end

  halt 400, "Unknown event type"
end

def verify_signature(secret_key, payload, timestamp, received_signature)
  signature_data = "#{timestamp}.#{payload}"
  computed_signature = OpenSSL::HMAC.hexdigest('sha256', secret_key, signature_data)
  OpenSSL.secure_compare(computed_signature, received_signature)
end

def fetch_player_data(event_data)
  # Placeholder logic for fetching of player data.
  # In a real application, this function would interact with your database or user management system.
  { player_id: "r2d2-c3po", name: "Molly", attributes: { level: 2 }, country: "US" }
end

const express = require('express');
const crypto = require('crypto');

const app = express();

app.post('/webhook', express.raw({ type: "*/*" }), async (req, res) => {
  const secretKey = '<YOUR_S2S_KEY>'; // Replace with your actual webhook secret key

  const rawPayload = req.body;
  const timestamp = req.headers['x-aghanim-signature-timestamp'];
  const receivedSignature = req.headers['x-aghanim-signature'];

  if (!verifySignature(secretKey, rawPayload, timestamp, receivedSignature)) {
    return res.status(403).send('Invalid signature');
  }

  const payload = JSON.parse(req.body);
  const { event_type, event_data } = payload;

  if (event_type === 'player.verify') {
    const playerData = fetchPlayerData(event_data);
    if (!playerData) {
      res.status(401).json({ error: 'Player verification failed' });
      return;
    }
    return res.json(playerData);
  }

  return res.status(400).send('Unknown event type');
});

function verifySignature(secretKey, payload, timestamp, receivedSignature) {
  const signatureData = `${timestamp}.${payload}`;
  const computedSignature = crypto
    .createHmac('sha256', secretKey)
    .update(signatureData)
    .digest('hex');
  return crypto.timingSafeEqual(Buffer.from(computedSignature), Buffer.from(receivedSignature));
}

function fetchPlayerData(event_data) {
  // Placeholder logic for fetching player data.
  // In a real application, this function would interact with your database or user management system.
  return {
    player_id: 'r2d2-c3po',
    name: 'Molly',
    attributes: { level: 2 },
    country: 'US'
  };
}

package main

import (
  "crypto/hmac"
  "crypto/sha256"
  "encoding/hex"
  "encoding/json"
  "fmt"
  "io/ioutil"
  "net/http"
)

func webhookHandler(w http.ResponseWriter, r *http.Request) {
  secretKey := "<YOUR_S2S_KEY>"  // Replace with your actual webhook secret key

  rawPayload, _ := ioutil.ReadAll(r.Body)
  payload := string(rawPayload)
  timestamp := r.Header.Get("X-Aghanim-Signature-Timestamp")
  receivedSignature := r.Header.Get("X-Aghanim-Signature")

  if !verifySignature(secretKey, payload, timestamp, receivedSignature) {
    http.Error(w, "Invalid signature", http.StatusForbidden)
    return
  }

  var data map[string]interface{}
  if err := json.Unmarshal(rawPayload, &data); err != nil {
    http.Error(w, "Invalid payload", http.StatusBadRequest)
    return
  }

  eventType := data["event_type"].(string)
  eventData := data["event_data"].(map[string]interface{})

  if eventType == "player.verify" {
    playerData := verifyPlayer(eventData)
    if playerData == nil {
      http.Error(w, "Player verification failed", http.StatusUnauthorized)
      return
    }
    json.NewEncoder(w).Encode(playerData)
    return
  }

  http.Error(w, "Unknown event type", http.StatusBadRequest)
}

func verifySignature(secretKey, payload, timestamp, receivedSignature string) bool {
  signatureData := fmt.Sprintf("%s.%s", timestamp, payload)
  mac := hmac.New(sha256.New, []byte(secretKey))
  mac.Write([]byte(signatureData))
  computedSignature := hex.EncodeToString(mac.Sum(nil))
  return hmac.Equal([]byte(computedSignature), []byte(receivedSignature))
}

func verifyPlayer(eventData map[string]interface{}) map[string]interface{} {
  // Placeholder logic for fetching player data.
  // In a real application, this function would interact with your database or user management system.
  return map[string]interface{}{
    "player_id": "r2d2-c3po",
    "name": "Molly",
    "attributes": map[string]interface{}{"level": 2},
    "country": "US",
  }
}

Once your function is ready:

1. Make your endpoint available.
2. Register your endpoint within Aghanim account → Game → Webhooks → New Webhook by choosing the player verification event type.

Alternatively, you can register your endpoint within Aghanim using the Create Webhook API method.

Request schema

Below is an example of an player.verify webhook request:

HTTP

POST /your/webhook/uri HTTP/1.1
Content-Type: application/json
Host: your-webhook-endpoint.com
User-Agent: Aghanim/0.1.0
X-Aghanim-Signature: 2e45ed4dede5e09506717490655d2f78e96d4261040ef48cc623a780bda38812
X-Aghanim-Signature-Timestamp: 1725548450

{
  "event_type": "player.verify",
  "event_data": {
    "player_id": "2D2R-OP3C"
  },
  "event_time": 1725548450,
  "event_id": "whevt_eCacGbJVbvToOgzjXUgOCitkQE",
  "idempotency_key": null,
  "request_id": "d1593e9c-c291-4004-8846-6679c2e5810b",
  "sandbox": false,
  "trigger": "hub.login",
  "transaction_id": "whtx_eCacGbJVbvT",
  "context": null,
  "game_id": "gm_exTAyxPsVwh"
}


cURL

curl "https://your-webhook-endpoint.com/your/webhook/uri" \
    -X POST \
    -H "Content-Type: application/json" \
    -H "User-Agent: Aghanim/0.1.0" \
    -H "X-Aghanim-Signature: 2e45ed4dede5e09506717490655d2f78e96d4261040ef48cc623a780bda38812" \
    -H "X-Aghanim-Signature-Timestamp: 1725548450" \
    -d '{
      "event_type": "player.verify",
      "event_data": {
        "player_id": "2D2R-OP3C"
      },
      "event_time": 1725548450,
      "event_id": "whevt_eCacGbJVbvToOgzjXUgOCitkQE",
      "idempotency_key": null,
      "request_id": "d1593e9c-c291-4004-8846-6679c2e5810b",
      "sandbox": false,
      "trigger": "hub.login",
      "transaction_id": "whtx_eCacGbJVbvT",
      "context": null,
      "game_id": "gm_exTAyxPsVwh"
    }'


The Event schema

Key	Type	Description
event_id	string	Unique Event ID generated by Aghanim.
game_id	string	Your game ID in the Aghanim system.
event_type	string	The type of the event, player.verify in this case.
event_time	number	Event date in Unix epoch time.
event_data	EventData	Contains the event-specific data, with possible keys for inherited objects.
idempotency_key	string|null	Ensures webhook actions are executed only once, even if retried. Can be null depending on event type.
request_id	string|null	If the event was triggered by an API request, the request ID is included.
sandbox	boolean	Indicates whether the event was sent from the sandbox game environment.
trigger	string|null	The trigger that caused the event to be sent.
transaction_id	string	The transaction ID generated by Aghanim. This ID may be the same for multiple events emitted within the same transaction.
context	object|null	Contextual information about the event.

The EventData schema

Key	Type	Description
player_id	string	The unique Player ID chosen for player authentication.

The Trigger values

Value	Description
hub.login	When the player opens the game hub.
hub.interact	Triggers every 6 hours to refresh data.
hub.purchase	When the player clicks the buy button in the store to confirm that the item is still available based on the player's attributes.
test	When using the "Send test event" in the Dashboard.

Response schema

Upon a successful player verification, your server is expected to return a status code in the 2xx range and the following JSON payload containing player data:

Key	Type	Description	Required?
player_id	string	Unique Player ID chosen for player authentication.	Yes
name	string	Player's nickname.	Yes
attributes	Attributes	Basic player attributes expected by Aghanim.	Yes
avatar_url	string	Player's avatar URL.	No
email	string	Player's email address.	No
banned	boolean	Indicates whether the player is banned in the game.	No
segments	string[]	Segments to which the player belongs.	No
country	string	Two-letter country code according to ISO 3166‑1.	No
custom_attributes	CustomAttributes	Custom player attributes.	No
balances	Balance[]	Player's virtual currency balances.	No

The Balance object

The Balance object contains the following fields:

Key	Type	Description	Required?
sku	string	Item SKU matching on both the game and Aghanim sides linked to the virtual currency.	Yes
quantity	number	Player's balance in the currency.	Yes

The Attributes object

The Attributes object contains the following fields:

Key	Type	Description	Required?
level	number	Player's level in the game.	Yes
platform	string	The platform on which the player is using the game hub. Possible values: ios, android.	No
marketplace	string	Marketplace from which the player originates. Possible values: app_store, google_play, other.	No
soft_currency_amount	number	Player's soft currency balance.	No
hard_currency_amount	number	Player's hard currency balance.	No

The CustomAttributes object

The CustomAttributes object contains key-value pairs, for example:

{
  "is_premium": true,
  "age": 25,
  "favorite_color": "blue",
  "install_date": 1704070800
}

These attributes can be used later in LiveOps or Segmentation for constructing logic conditions to target specific player segments.

warning

Important: custom attributes must be declared in Game → Player attributes.

Successful response example:

{
  "player_id": "2D2R-OP3C",
  "name": "Beebee-Ate",
  "avatar_url": "https://static-platform.aghanim.com/images/bb8.jpg",
  "attributes": {"level": 2},
  "country": "US"
}

Need help?
Contact our integration team at integration@aghanim.com
