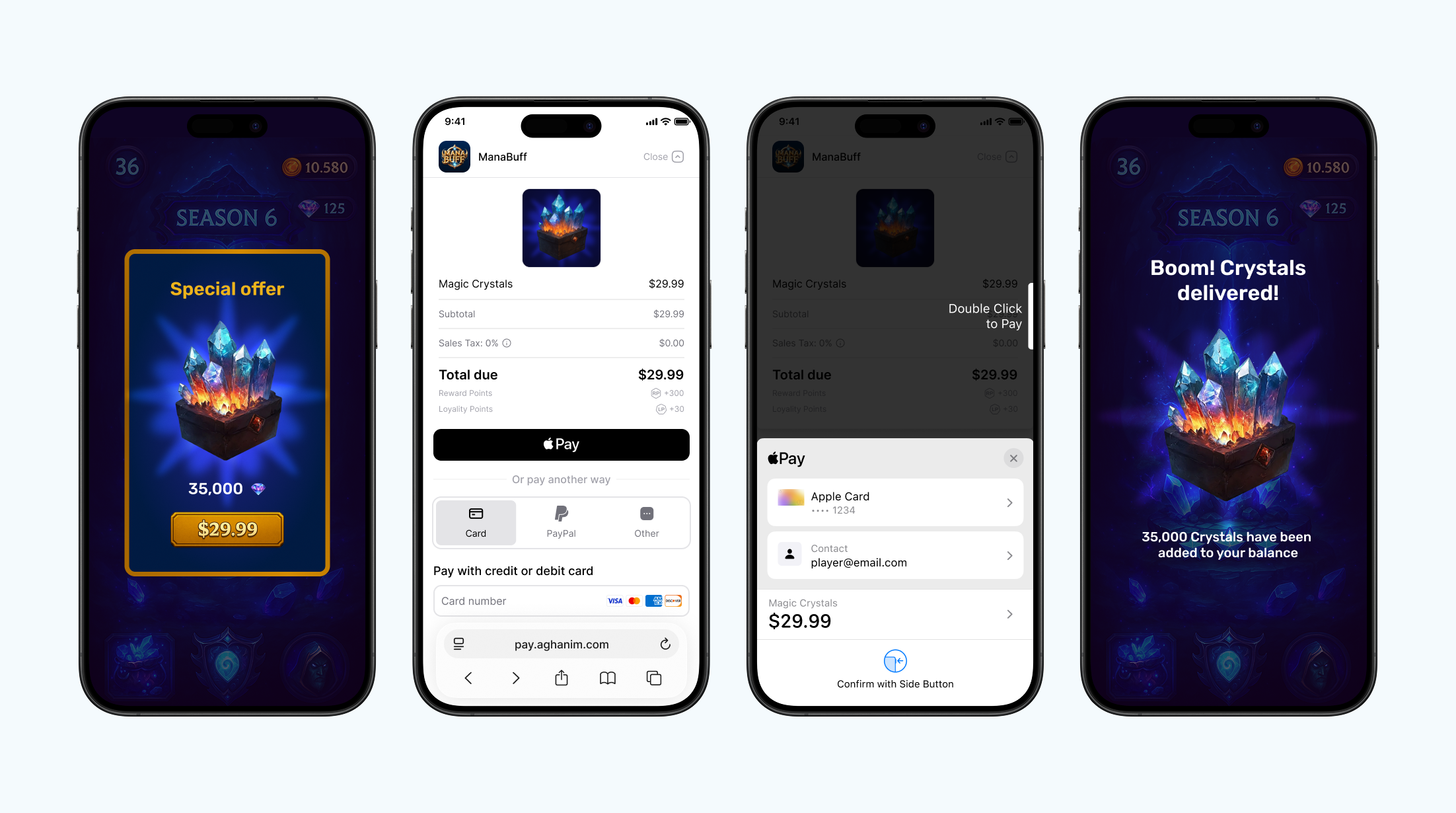

Checkout Links

Integrate the Aghanim to start accepting payments for your game items online through a prebuilt checkout page. A lightweight, portal-based integration used when full API or SDK implementation would be excessive. Though you will need some coding.

Register with Aghanim and link your game

First, register for an Aghanim account. At the end of registration, add the link to your mobile game. It should be published in Apple App Store or Google Play Store.

Set up environment

With sandbox you can

• Experiment with new features without affecting your live integration.
• Create payments in your account to accumulate a fake balance or use test helpers to simulate external events.

If you want to make real payments, you are all set as the live mode is used as default. Otherwise, use a sandbox, an isolated test environment, to simulate the Aghanim events to test payments without real money movement. To turn on the sandbox mode, set the Sandbox toggle to the active position.

Create items

Every Checkout Link is a deep link and associated with a player and an item, they are crucial for the Checkout to work. In a Checkout Link, you can use only the items that are already added to the Dashboard. And all players that aren’t in the Dashboard will be created once the Checkout Link is opened.

When passing an item, it should have a SKU, a unique identifier for the item within your game backend. You can add their prices, currency, sale configuration, and more.

Add an item to the Dashboard so you can use it in a Checkout Link:

1. Go to SKU Management → Items.
2. Click Add Item. The site will open the Add Item page.
3. Enter the item name New item.
4. Enter the item SKU new-item-199.
5. In the Price block:
   1. Select the Fiat price type for a real money item.
   2. Enter the price 1.99.
6. Click Add item.

For integration purposes, we have shortened an item setup. Before going live, use every suitable feature while adding items to the Dashboard.

Create Checkout Link

Each Checkout Link is created for one item:

1. Go to Integration → Checkout Links.
2. Click Add Checkout Link. The site will open the Add Checkout Link window.
3. In the general block, enter and select the SKU new-item-199.
4. Click Save changes.

To complete the Checkout Link, copy it and replace the player ID placeholder with the value.

https://pay.aghanim.com/link/lnk_eHriLMNNvUxvbFHm?player_id={player_id}

Redirect your player to Checkout page

Add a checkout button to your game and embed in it the created Checkout Link. Once the player clicks it, they will be redirected to the payment form in their browser.

Make payment

Make a payment. If you have set the sandbox mode, use the test card below. In the sandbox, you can make payments only with the test cards. They accept any digits as CVV and any future date as expiry date. Don’t forget to fill in an email address to check the receipt is sent and any postal code as a billing address.

Successful payments

Find the full list of card in Test payments → Successful payments.

After you complete the payment, you will receive a receipt sent to the specified email address and a transaction record in Aghanim Dashboard → Transactions.

Card Brand	Card Number	CVV	Expiry date	Country
VISA (credit)	4242 4242 4242 4242	Any 3 digits	Any future date	GB

Unsuccessful payments

Find the full list of card in Test payments → Unsuccessful payments.

Make unsuccessful payment just in case you are curious. You will see the transaction in Aghanim Dashboard → Transactions as well.

Number	CVV	Expiry date	Response code	Description
4832 2850 6160 9015	Any 3 digits	Any future date	16	Payment declined

OptionalAll payment methods

For the live mode, you can find all supported payment methods in Company settings → Payment methods. Turn on or off those you see suitable. Some payment methods are available globally by default. You can’t disable Credit cards, Apple Pay, Google Pay, and PayPal.

In Checkout, the Aghanim evaluates the currency and any restrictions, then dynamically presents only the payment methods available to the player based on evaluation.

OptionalSaving payment method

When you use the live mode, the payment form shows to the player a setting to save their payment method so they can make a one-click payment in the future.

Handle post-payment events

To complete the Checkout, handle items’ granting and chargebacks on your game backend. To do so, implement a webhook system that accepts the item.add and item.remove webhooks. See the code example with the implementation.

Comply with the Aghanim requirements for these webhooks:

• Use HTTPS schema for the single POST webhook endpoint.
• Check that webhooks are generated and signed by the Aghanim.
• Handle the idempotency_key field in the webhook payload to prevent processing duplicate webhooks.
• Respond with the HTTP status codes:
  • 2xx for successfully processed webhooks.
  • 4xx and 5xx for errors.

Grant items to player

The Aghanim sends the item.add webhook to let you know about the purchased items and ask for your permission to grant them to the player.

You can reject purchases with automatic refunds.

When the Aghanim has your 2xx answer, it can complete the checkout logic and redirect the player to a deep link if provided.

Support refunds and chargebacks

The Aghanim sends the item.remove webhook when a bank or payment system reverses the transaction, or you have requested refund in Aghanim Dashboard → Transactions. Partial refunds are not supported.

Use suggested implementation

The suggested implementation handles the webhooks mentioned before:

• item.add for granting items. You need it for integration.
• item.remove for refunds and chargebacks. You might need it for integration.

• Python
• Ruby
• Node.js
• Go

# 통합에서 웹훅 이벤트를 처리하기 위해 이 샘플 코드를 사용하세요.
#
# 1. 이 코드를 `server.py`라는 새 파일에 붙여 넣으세요.
#
# 2. 의존성 설치:
#    python -m pip install fastapi[all]
#
# 3. http://localhost:8000에서 서버를 실행합니다
#    python server.py

import fastapi, hashlib, hmac, json, typing

app = fastapi.FastAPI()

@app.post("/webhook")
async def webhook(request: fastapi.Request) -> dict[str, typing.Any]:
    secret_key = "<YOUR_S2S_KEY>"  # 실제 웹훅 비밀 키로 교체하세요

    raw_payload = await request.body()
    payload = raw_payload.decode()
    timestamp = request.headers["x-aghanim-signature-timestamp"]
    received_signature = request.headers["x-aghanim-signature"]

    if not verify_signature(secret_key, payload, timestamp, received_signature):
        raise fastapi.HTTPException(status_code=403, detail="Invalid signature")

    data = json.loads(payload)
    event_type = data["event_type"]
    event_data = data["event_data"]

    if event_type == "item.add":
        add_item(event_data)
        return {"status": "ok"}

    if event_type == "item.remove":
        remove_item(event_data)
        return {"status": "ok"}

    raise fastapi.HTTPException(status_code=400, detail="Unknown event type")

def verify_signature(secret_key: str, payload: str, timestamp: str, received_signature: str) -> bool:
    signature_data = f"{timestamp}.{payload}"
    computed_hash = hmac.new(secret_key.encode(), signature_data.encode(), hashlib.sha256)
    computed_signature = computed_hash.hexdigest()
    return hmac.compare_digest(computed_signature, received_signature)

def add_item(event_data: dict[str, typing.Any]) -> None:
    # 이벤트를 처리하고 항목을 추가하기 위한 플레이스홀더 로직입니다.
    # 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
    player_id = event_data["player_id"]
    for item in event_data["items"]:
      sku = event_data["sku"]
      print(f"Item {sku} have been credited to player's {player_id} account.")

def remove_item(event_data: dict[str, typing.Any]) -> None:
    # 이벤트를 처리하고 항목을 제거하기 위한 플레이스홀더 로직입니다.
    # 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
    player_id = event_data["player_id"]
    for item in event_data["items"]:
      sku = event_data["sku"]
      print(f"Item {sku} have been removed from player's {player_id} account.")

if __name__ == "__main__":
    import uvicorn
    uvicorn.run(app, host="0.0.0.0", port=8000)

# 통합에서 웹훅 이벤트를 처리하기 위해 이 샘플 코드를 사용하세요.
#
# 1. 이 코드를 `server.rb`라는 새 파일에 붙여 넣으세요.
#
# 2. 의존성 설치:
#    gem install sinatra json hmac
#
# 3. http://localhost:8000에서 서버를 실행합니다
#    ruby server.rb

require 'sinatra'
require 'json'
require 'openssl'

post '/webhook' do
  secret_key = "<YOUR_S2S_KEY>"  # 실제 웹훅 비밀 키로 교체하세요

  payload = request.body.read
  timestamp = request.env["HTTP_X_AGHANIM_SIGNATURE_TIMESTAMP"]
  received_signature = request.env["HTTP_X_AGHANIM_SIGNATURE"]

  unless verify_signature(secret_key, payload, timestamp, received_signature)
    halt 403, "Invalid signature"
  end

  data = JSON.parse(payload)
  event_type = data["event_type"]
  event_data = data["event_data"]

  if event_type == "item.add"
    add_item(event_data)
    return { status: "ok" }.to_json
  end

  if event_type == "item.remove"
    remove_item(event_data)
    return { status: "ok" }.to_json
  end

  halt 400, "Unknown event type"
end

def verify_signature(secret_key, payload, timestamp, received_signature)
  signature_data = "#{timestamp}.#{payload}"
  computed_signature = OpenSSL::HMAC.hexdigest('sha256', secret_key, signature_data)
  OpenSSL.secure_compare(computed_signature, received_signature)
end

def add_item(event_data)
  # 이벤트를 처리하고 항목을 추가하기 위한 플레이스홀더 로직입니다.
  # 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
  player_id = event_data["player_id"]
  for item in event_data["items"] do
    sku = item["sku"]
    puts "Item #{sku} has been credited to player's #{player_id} account."
  end
end

def remove_item(event_data)
  # 이벤트를 처리하고 항목을 제거하기 위한 플레이스홀더 로직입니다.
  # 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
  player_id = event_data["player_id"]
  for item in event_data["items"] do
    sku = item["sku"]
    puts "Item #{sku} has been removed from player's #{player_id} account."
  end
end

if __FILE__ == $0
  require 'sinatra'
  set :bind, '0.0.0.0'
  set :port, 8000
end

// 통합에서 웹훅 이벤트를 처리하기 위해 이 샘플 코드를 사용하세요.
//
// 1. 이 코드를 새로운 파일 `server.js`에 붙여 넣으세요.
//
// 2. 의존성 설치:
//    npm install express
//
// 3. http://localhost:8000에서 서버를 실행합니다
//    node server.js

const express = require('express');
const crypto = require('crypto');

const app = express();

app.post('/webhook', express.raw({ type: "*/*" }), async (req, res) => {
  const secretKey = '<YOUR_S2S_KEY>'; // 실제 웹훅 비밀 키로 교체하세요

  const rawPayload = req.body;
  const timestamp = req.headers['x-aghanim-signature-timestamp'];
  const receivedSignature = req.headers['x-aghanim-signature'];

  if (!verifySignature(secretKey, rawPayload, timestamp, receivedSignature)) {
    return res.status(403).send('Invalid signature');
  }

  const payload = JSON.parse(req.body);
  const { event_type, event_data } = payload;

  if (event_type === 'item.add') {
    addItem(event_data);
    return res.json({ status: 'ok' });
  }

  if (event_type === 'item.remove') {
    removeItem(event_data);
    return res.json({ status: 'ok' });
  }

  return res.status(400).send('Unknown event type');
});

function verifySignature(secretKey, payload, timestamp, receivedSignature) {
  const signatureData = `${timestamp}.${payload}`;
  const computedSignature = crypto
    .createHmac('sha256', secretKey)
    .update(signatureData)
    .digest('hex');
  return crypto.timingSafeEqual(Buffer.from(computedSignature), Buffer.from(receivedSignature));
}

function addItem(event_data) {
  // 이벤트를 처리하고 항목을 추가하기 위한 플레이스홀더 로직입니다.
  // 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
  const playerId = event_data.player_id;
  for (const item of event_data.items) {
    const sku = item.sku;
    console.log(`Item ${item.sku} has been credited to player's ${playerId} account.`);
 }
}

function removeItem(event_data) {
  // 이벤트 처리 및 항목 제거를 위한 플레이스홀더 로직입니다.
  // 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
  const playerId = event_data.player_id;
  for (const item of event_data.items) {
    const sku = item.sku;
    console.log(`Item ${item.sku} has been removed from player's ${playerId} account.`);
 }
}

app.listen(8000, () => {
  console.log('Server is running on http://localhost:8000');
});

// 통합에서 웹훅 이벤트를 처리하기 위한 샘플 코드입니다.
//
// 1. 이 코드를 새로운 파일 `server.go`에 붙여넣으세요.
//
// 2. http://localhost:8000에서 서버를 실행하세요
//    go run server.go

package main

import (
  "crypto/hmac"
  "crypto/sha256"
  "encoding/hex"
  "encoding/json"
  "fmt"
  "io/ioutil"
  "net/http"
)

func webhookHandler(w http.ResponseWriter, r *http.Request) {
  secretKey := "<YOUR_S2S_KEY>"  // 실제 웹훅 비밀 키로 교체하세요

  rawPayload, _ := ioutil.ReadAll(r.Body)
  payload := string(rawPayload)
  timestamp := r.Header.Get("X-Aghanim-Signature-Timestamp")
  receivedSignature := r.Header.Get("X-Aghanim-Signature")

  if !verifySignature(secretKey, payload, timestamp, receivedSignature) {
    http.Error(w, "Invalid signature", http.StatusForbidden)
    return
  }

  var data map[string]interface{}
  if err := json.Unmarshal(rawPayload, &data); err != nil {
    http.Error(w, "Invalid payload", http.StatusBadRequest)
    return
  }

  eventType := data["event_type"].(string)
  eventData := data["event_data"].(map[string]interface{})

  if eventType == "item.add" {
    addItem(eventData)
    w.WriteHeader(http.StatusOK)
    json.NewEncoder(w).Encode(map[string]string{"status": "ok"})
    return
  }

  if eventType == "item.remove" {
    removeItem(eventData)
    w.WriteHeader(http.StatusOK)
    json.NewEncoder(w).Encode(map[string]string{"status": "ok"})
    return
  }

  http.Error(w, "Unknown event type", http.StatusBadRequest)
}

func verifySignature(secretKey, payload, timestamp, receivedSignature string) bool {
  signatureData := fmt.Sprintf("%s.%s", timestamp, payload)
  mac := hmac.New(sha256.New, []byte(secretKey))
  mac.Write([]byte(signatureData))
  computedSignature := hex.EncodeToString(mac.Sum(nil))
  return hmac.Equal([]byte(computedSignature), []byte(receivedSignature))
}

func addItem(eventData map[string]interface{}) {
  // 이벤트를 처리하고 항목을 추가하기 위한 플레이스홀더 로직입니다.
  // 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
  playerID := eventData["player_id"].(string)
  items := eventData["items"].([]interface{})
  for _, item := range items {
    itemMap := item.(map[string]interface{})
    sku := itemMap["sku"].(string)
    fmt.Printf("Item %s has been credited to player's %s account.\\n", sku, playerID)
  }
}

func removeItem(eventData map[string]interface{}) {
  // 이벤트 처리 및 항목 제거를 위한 플레이스홀더 로직입니다.
  // 실제 애플리케이션에서는 이 함수가 데이터베이스나 인벤토리 시스템과 상호작용합니다.
  playerID := eventData["player_id"].(string)
  items := eventData["items"].([]interface{})
  for _, item := range items {
    itemMap := item.(map[string]interface{})
    sku := itemMap["sku"].(string)
    fmt.Printf("Item %s has been removed from player's %s account.\\n", sku, playerID)
  }
}

func main() {
  http.HandleFunc("/webhook", webhookHandler)
  fmt.Println("Server is running on http://localhost:8000")
  http.ListenAndServe(":8000", nil)
}

Add webhook endpoint to Aghanim

When the webhook handling is ready, add the endpoint to the Dashboard so the Aghanim could start sending the events:

1. Go to Integration → Webhooks.
2. Click New Webhook. The site will open the Create new webhook window.
3. Cope and paste the URL https://<YOUR_DOMAIN>/webhook.
4. Click Select events. The site will open the Select events to send window.
5. Expand the Main class and select the Item add, Item remove checkboxes.
6. Click Apply.
7. Click Add. The site will redirect you to the webhook page.
8. Click Back.

Test your integration

After you have handled the webhooks, check that the purchased item is in your inventory. That’s all.

Next steps

• See Currency codes and minor units to learn how the Aghanim represents monetary amounts.
• See Payment Webhook to learn about the payment progress when the player visits the payment form.

도움이 필요하세요?
통합팀에 문의하십시오 integration@aghanim.com
